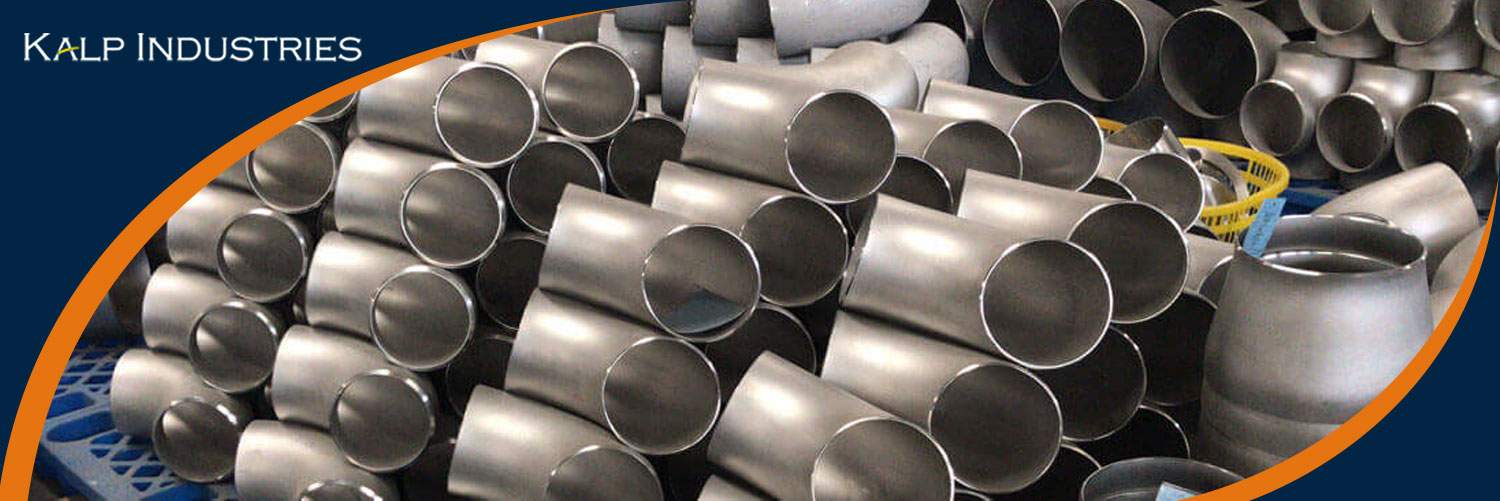

Description Of Alloy 20 Pipe Fittings
Alloy 20 is a chromium-iron-nickel-based, austenitic alloy with excellent corrosion resistance in chemical environments. The alloy contains sulfuric acid and many aggressive media well. The alloy is stabilized with niobium which helps it to resist intergranular corrosion. Alloy 20 grade is also known as UNS NO8020. Also, there is a high alloy of a specific grade of stainless steel. These fittings have excellent mechanical properties, such as resistance to chloride stress corrosion cracking and sulphuric acid.
Alloy fittings mainly contain an element of nickel and copper, an alloy with traces of molybdenum and chromium content. When these chemical elements are mixed, it gives high strength and corrosion resistance properties. These fittings have chosen dimensions as per the set industrial norms. Engineers mainly select it because of its advantageous features, including resistance to corrosion and abrasion. The industrial fishing process enhances the dimensional accuracy of the alloy, and satin or bright black polish protects it from rusting.
Table of Content
Composition Of Alloy 20 Pipe Fittings:
This alloy combines carbon, manganese, silicon, sulfur, copper, nickel, chromium, iron, molybdenum, and phosphorus element.
Properties Of Alloy 20 Pipe Fittings
Alloy 20 Pipe Fittings have a higher corrosion resistance than regular steel, which is widely used because of its property. It shows good corrosion resistance, is highly suitable for fabrication, and has excellent mechanical properties. This alloy offers good resistance to corrosion, crevice corrosion, and pitting, strong resistance to stress-corrosion cracking in boiling sulfuric acid, excellent resistance to other acids such as phosphoric and nitric acids, is suitable for fabrication, and excellent mechanical properties.
Applications Of Alloy 20 Pipe Fittings
This alloy is used in the application are as follows:
• Chemical Plants
• Food processing
• Dye production
• Heat exchangers
• Mixing Tanks
• Pickling equipment
• Petrochemical plants
Kalp Industries is a known manufacturer and dealer of Alloy 20 Pipe Fittings. We are a worldwide supplier of fittings with the fastest delivery options. We are stocking the fittings in different shapes such as reducer, cross, stub bends, elbow, and tee, or customers can also order as per their applications. We have been making alloy fittings using the finest grade of crude materials. These materials are fabricated from advanced machines and equipment.
Specifications | ASTM B366 / ASME SB366 |
Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Size | Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″ |
Type | Seamless / Welded / Fabricated |
Schedule | Sch 5 TO Sch XXS. |
Thickness | 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc. |
STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
All Fittings | 90°and 45° Ells and Tees | Reducers and Lap Joint Stub | Caps | 180° Returns | Angularity Tol | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal Pipe Plane Size (NPS) | Outside(1) Diameter at Bevel | Inside(1) Diameter at End | Wall(2) Thickness | Centre-to- End Dimension A,B,C,M | Overall Length L | Overall Length E | Centre-to- Centre Dimension O | Back-to- Face Dimension K | Alignment at Ends U | Nominal Pipe SIze | Off Angle Q | Off Angle P |
1/2 TO 2-1/2 | +1/16 | ±1/32 | Not less than 87-1/2% of Normal Thickness | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 12 to 4 | 1/32 | 1/16 |
-1/32 | 5 to 8 | 1/16 | 1/8 | |||||||||
3 TO 3-1/2 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 10 to 12 | 3/32 | 3/16 | |
4 | ±1/16 | ±1/16 | ±1/16 | ±1/16 | ±1/8 | ±1/4 | ±1/4 | ±1/32 | 14 to 16 | 3/32 | 1/4 | |
5 TO 8 | +1/32 | ±1/16 | ±1/16 | ±1/16 | ±1/4 | ±1/4 | ±1/4 | ±1/32 | 18 to 24 | 1/8 | 3/8 | |
-1/16 | ||||||||||||
10 TO 18 | +1/16 | ±1/8 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | All dimensions are in inches | |||
-1/8 | ||||||||||||
20 TO 24 | +1/4 | ±3/32 | ±3/32 | ±3/32 | ±1/4 | ±3/8 | ±1/4 | ±1/16 | ||||
-3/32 |
Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
We Serve Application Industry
Fastener applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
