Hex Bolts Dimensions Size Chart

Hex Bolts Dimensions Size Chart, Hex Bolts Dimensions Chart, Hex Bolts DIN 933 Dimensions, Hex Bolts ISO 4017 Dimensions Chart, Hex Bolts DIN 93 Dimensions Chart

If you’re looking for a reliable Hex Bolts Dimensions Size Chart. Then you’re at the right place. Hex bolts are fasteners with a hexagonal-shaped head and a threaded shaft. Hex Bolts Fasteners join two or more objects by being inserted through aligned holes and secured with a nut. The hexagonal head allows easy tightening using a wrench or socket, providing a strong and stable connection. These bolts come in various sizes, materials, and grades to suit different applications and requirements.

DIN 933 & ISO4017 & UNI5739, DIN 931 & ISO4014 & UNI5737, DIN 558 & ISO4018, BS 1083, BS 1768, ASME B18.2.1, DIN-EN14399-4, DIN 601 & ISO 4016 & CSN 21301 & EU 24016, DIN 7968, DIN 7990 & CSN 21308 Charts

Hex bolts are commonly used in repair and construction work. They have a hexagonal head, as the name suggests, and are equipped with machine threads for a firm, rough handling. For bespoke applications, they are available in an extensive array of hex bolt sizes contingent upon the dimensional specifications. These hex bolts are made of carbon steel, alloy steel, and stainless steel that resist corrosion, preventing rust from weakening the structure. The bolt may have full threading or standard threading, depending on its length.

Hex Bolts DIN 933 Dimensions Chart

D1D1 K E S
M3 2 6.01 5.5
M4 2.8 7.66 7
M5 3.5 8.79 8
M6 4 11.05 10
M8 5.3 14.38 13
M10 6.4 18.9 17
M12 7.5 21.1 19
M14 8.8 24.49 22
M16 10 26.75 24
M18 11.5 30.14 27
M20 12.5 33.53 30
M22 14 35.72 32
M24 15 39.98 36
M27 17 45.2 41
M30 18.7 50.85 46
M33 21 55.37 50
M36 22.5 60.79 55
M42 26 71.3 65
M48 30 82.6 75

Hex Bolts ISO 4017 Dimensions Chart

D1D1 K E S
M3 2 6.01 5.5
M4 2.8 7.66 7
M5 3.5 8.79 8
M6 4 11.05 10
M8 5.3 14.38 13
M10 6.4 18.9 16
M12 7.5 21.1 18
M14 8.8 24.49 21
M16 10 26.75 24
M18 11.5 30.14 27
M20 12.5 33.53 30
M22 14 35.72 34
15 39.98 36
M27 17 45.2 41
M30 18.7 50.85 46
M33 21 55.37 50
M36 22.5 60.79 55
M42 26 71.3 65
M48 30 82.6 75

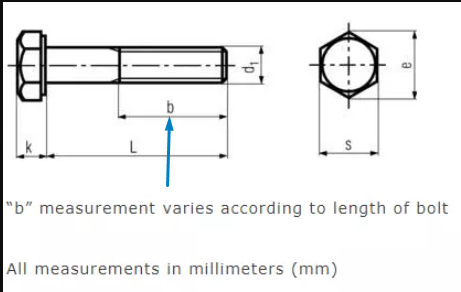

hex bolt dimensions

Hex Bolts DIN 931 Dimensions Chart

D1D1 B to 125 B to 200 B over 200 K E S
M4 14 2.8 7.66 7
M5 16 3.5 8.79 8
M6 18 24 4 11.05 10
M8 22 28 5.3 14.38 13
M10 26 32 45 6.4 18.9 17
M12 30 36 49 7.5 21.1 19
M14 34 40 53 8.8 24.49 22
M16 38 44 57 10 26.75 24
M18 42 48 61 11.5 30.14 27
M20 46 52 65 12.5 33.53 30
M22 50 56 69 14 35.72 32
M24 54 60 73 15 39.98 36
M27 60 66 79 17 45.2 41
M30 66 72 85 18.7 50.85 46
M33 72 78 91 21 55.37 50
M36 78 84 97 22.5 60.79 55
M42 90 96 109 26 71.3 65
M45 96 102 115 28 76.95 70
M48 102 108 121 30 82.6 75
