What are Copper Instrumentation valves?
Copper Instrumentation Valves are a type of valve used for managing flow and pressure in various processes and systems. These valves differ from bronze valves due to their enhanced corrosion resistance. They are made using a combination of copper and zinc, which makes them more durable and flexible. These valves can also withstand high temperatures and exposure to toxic chemicals.
In terms of appearance, Copper Instrumentation Valves are golden and considered one of the most reliable materials available. They are commonly used in the piping industry for regulating the flow and pressure of various substances, such as gas, oil, vapors, or liquids.
Table of Content
Advantages:
The advantages of Copper Instrumentation Valves are numerous. They are particularly important in the plumbing and fitting industries because they can be connected with a thread and function best at average temperatures. They are also highly durable, making them the ideal choice for plumbing. Copper valves can withstand high temperatures and are more flexible than steel and iron, a crucial feature in plumbing industries. And also copper tubing is known for their corrosion resistance, making them the best option for environments where corrosion is a concern.
Applications:
Copper Instrumentation Valves have many applications in piping, gas, oil, and fitting industries. They are highly suitable for industrial, hydraulic, and pneumatic installations. In particular, the plumbing industry benefits greatly from using copper valves, as they can handle high water temperatures. These valves are also commonly used in residential applications because they are durable and reliable. Additionally, they are widely employed in oiling and petrochemical production processes.
At Kalp Industries, we are committed to providing high-quality Valves and Fittings for the piping manufacturing industry. We offer an extensive range of Copper Instrumentation Valves to customers worldwide. Our valves and Copper Circle and Rings come in various specifications to meet our customers’ unique requirements.
Size | 1/16″ to 1″ (3mm to 25.4mm) |
Flow Pattern | Straight/ Angle |
Instrument valves Working pressure | 3000 psig (206 bar) |
Temperature Rating | PTFE 450F,(232C)/ Grafoil 700 F(371C) |

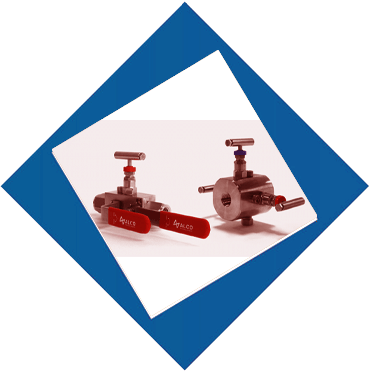

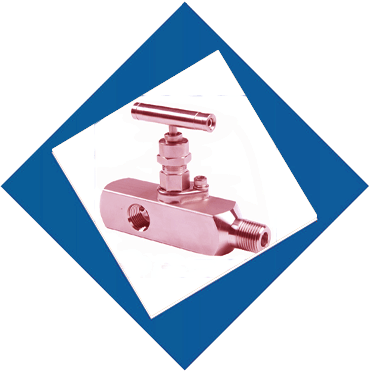

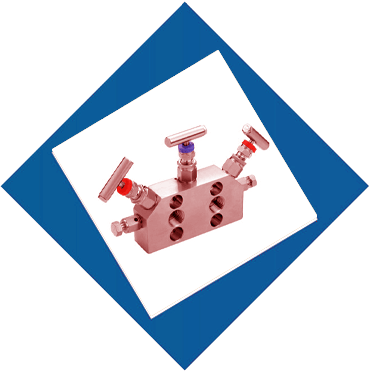

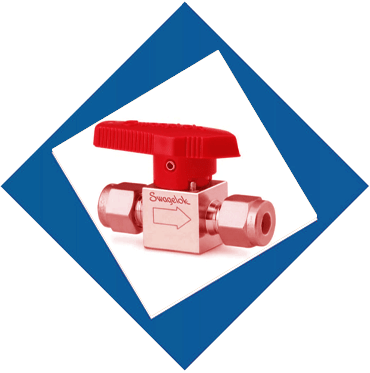

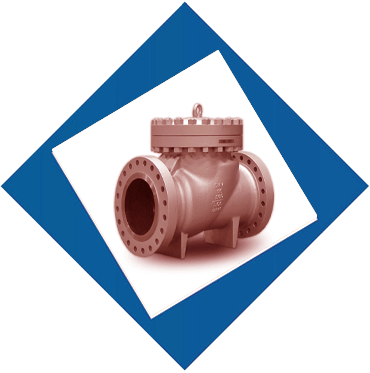

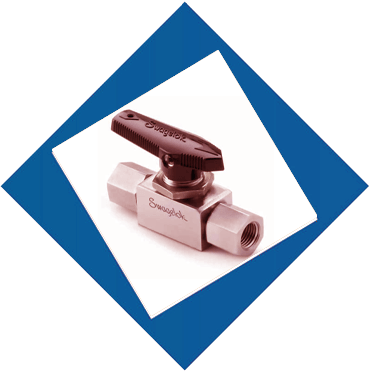

Forms | Ball Valve, Check Valve, Double Block & Bleed Valve, Gauge Valve, Manifold Valve, Mono Flange Valve, Needle Valve, Plug Valve, Pressure Relief Valve, Vent & Bleeder Valve |
End Connection | Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female |
Instrument Valves Applicable Standard |
|
Approvals |
|
We also stock & supply |
|
Uses & application |
|
Low Pressure Valves Connection |
|
Temp. °F | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
---|---|---|---|---|---|---|---|
-20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
1050 | 20 [1] | 310 | 410 | 615 | 925 | 1545 | 2570 |
1100 | 20 [1] | 255 | 345 | 515 | 770 | 1285 | 2145 |
1150 | 20 [1] | 200 | 265 | 400 | 595 | 995 | 1655 |
1200 | 20 [1] | 155 | 205 | 310 | 465 | 770 | 1285 |
1250 | 20 [1] | 115 | 150 | 225 | 340 | 565 | 945 |
1300 | 20 [1] | 85 | 115 | 170 | 255 | 430 | 715 |
1350 | 20 [1] | 60 | 80 | 125 | 185 | 310 | 515 |
1400 | 20 [1] | 50 | 65 | 95 | 145 | 240 | 400 |
1450 | 15 [1] | 35 | 45 | 70 | 105 | 170 | 285 |
1500 | 10 [1] | 25 | 35 | 55 | 80 | 135 | 230 |
Size | L | a | b | W | H |
---|---|---|---|---|---|
1/8″ | 56 | 28 | 28 | 60 | 80 |
¼” | 56 | 28 | 28 | 60 | 80 |
3/8” | 56 | 28 | 28 | 60 | 80 |
½” | 58 | 28 | 28 | 60 | 81 |
¾” | 62 | 35 | 35 | 60 | 85 |
1” | 70 | 45 | 45 | 70 | 100 |
Port Size (BSP) | Media Pressure | Media Temperature | CV |
---|---|---|---|
1/8″ | 0 to 408 Bar | -20°C to 230°C | |
¼” | 0 to 408 Bar | -20°C to 230°C | 0.4 |
3/8” | 0 to 408 Bar | -20°C to 230°C | 0.4 |
½” | 0 to 408 Bar | -20°C to 230°C | 0.6 |
¾” | 0 to 408 Bar | -20°C to 230°C | 1.6 |
1” | 0 to 408 Bar | -20°C to 230°C | 2.5 |
We Serve Application Industry
Fastener applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
