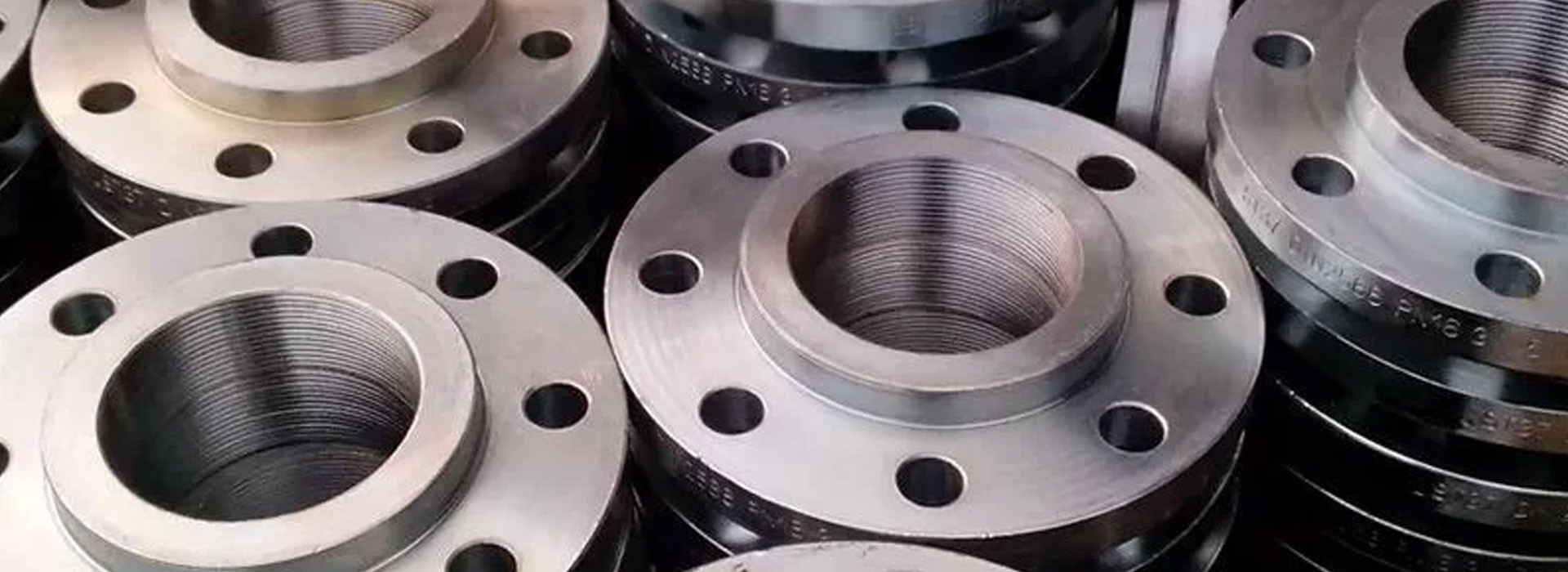

Stainless Steel Threaded Flange Supplier
A Stainless Steel Threaded Flange is a critical component in various piping and plumbing applications, designed to connect pipes and equipment securely. It offers a durable and corrosion-resistant solution for joining sections of pipes, valves, and other components in a wide range of industries, including petrochemical, oil and gas, food processing, and pharmaceuticals.
Stainless steel is the material of choice for threaded flanges due to its exceptional properties. It is an alloy of iron with a minimum of 10.5% chromium content, which forms a passive protective layer on the surface, making it highly resistant to corrosion, rust, and staining. This is especially crucial in applications where the flange will be exposed to moisture, chemicals, and varying temperatures.
Threaded flanges come in various sizes and pressure ratings, allowing for flexibility in system design. They are available in National Pipe Thread (NPT) and British Standard Pipe (BSP) threads, providing compatibility with a wide range of pipe fittings and valves. The threads enable a tight and secure connection, eliminating the need for welding, which can be time-consuming and expensive.
Stainless Steel Threaded Flange Supplier, A516 Gr 70 BSP Threaded Flange, SS Threaded Flange, Stainless Steel Threaded Flange Manufacturer, Stainless Steel Threaded Flange, Stainless Steel Screwed Flanges, ASME B16 5 Threaded Flange, DIN 2565 Pn6 Threaded Flange, Stainless Steel Threaded Flanges Manufacturer in Mumbai, India.
Table of Content
- About Stainless Steel Threaded Flanges
- Specification For SS Threaded Flanges
- Various Types of Stainless Steel Threaded Flanges
- Ready Stock Of Stainless Steel Threaded Flanges
- SS Threaded Flanges Dimension
- Size Chart of Stainless Steel Threaded Flanges
- Weight Chart of Stainless Steel Threaded Flanges
- We Serve application Industry
- We Export SS Threaded Flanges Across the Globe
- Domestic Stainless Steel Threaded Flanges
ASTM A350 LF2 RTJ Screwed Flange, Stainless Steel Flat Face Threaded Flange, DIN 2565 Pn10 Threaded Flange, En 1092 1 Type 13 Threaded Flange, SS Screwed Flange, Stainless Steel Threaded Flanges Stockist in India.
A stainless steel threaded flange is a critical component in various piping and plumbing applications, designed to connect pipes and equipment securely. It offers a durable and corrosion-resistant solution for joining sections of pipes, valves, and other components in a wide range of industries, including petrochemical, oil and gas, food processing, and pharmaceuticals.
Stainless steel is the material of choice for threaded flanges due to its exceptional properties. It is an alloy of iron with a minimum of 10.5% chromium content, which forms a passive protective layer on the surface, making it highly resistant to corrosion, rust, and staining. This is especially crucial in applications where the flange will be exposed to moisture, chemicals, and varying temperatures.
Threaded flanges come in various sizes and pressure ratings, allowing for flexibility in system design. They are available in National Pipe Thread (NPT) and British Standard Pipe (BSP) threads, providing compatibility with a wide range of pipe fittings and valves. The threads enable a tight and secure connection, eliminating the need for welding, which can be time-consuming and expensive.
Specification For SS Threaded Flanges
| Specifications | ASTM A 182/ ASME SA182 |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
STOCKIST & SUPPILERS FOR STAINLESS STEEL THREADED Flanges IN INDIA, CUSTOM SIZES SS THREADED, SCREWED Flanges AS PER CLIENT REQUIREMENT
Various Types of Stainless Steel Threaded Flanges
Screwed Flanges
- ANSI B16.5 Stainless Steel Screwed Flanges
- Stainless Steel Screwed Flange
- SS Screwed Flange
- Stainless Steel 304 Screwed Flanges
- ASTM A182 Stainless Steel Screwed Flanges
- 316L SS Screwed Flanges
- ASME SA182 Stainless Steel Screwed Flanges
- 304L Stainless Steel Screwed Flanges
- Stainless Steel Screwed Flanges
- 316 Stainless Steel Screwed Flanges
- SS Screwed Flanges
Raise Face Threaded Flanges
- SS Raise Face Threaded Flanges
- 316 Stainless Steel Raise Face Threaded Flanges
- 316L SS Raise Face Threaded Flanges
- ASME SA182 Stainless Steel Raise Face Threaded Flanges
- Stainless Steel Raise Face Threaded Flanges
- Stainless Steel 304 Raise Face Threaded Flanges
- Stainless Steel Raise Face Threaded Flange
- 304L Stainless Steel Raise Face Threaded Flanges
- ASTM A182 Stainless Steel Raise Face Threaded Flanges
- ANSI B16.5 Stainless Steel Raise Face Threaded Flanges
- SS Raise Face Threaded Flange
Flat Face Threaded Flanges
- ASTM A182 Stainless Steel Flat Face Threaded Flanges
- SS Flat Face Threaded Flange
- 316 Stainless Steel Flat Face Threaded Flanges
- ANSI B16.5 Stainless Steel Flat Face Threaded Flanges
- Stainless Steel Flat Face Threaded Flanges
- ASME SA182 Stainless Steel Flat Face Threaded Flanges
- SS Flat Face Threaded Flanges
- 304L Stainless Steel Flat Face Threaded Flanges
- Stainless Steel 304 Flat Face Threaded Flanges
- 316L SS Flat Face Threaded Flanges
- Stainless Steel Flat Face Threaded Flange
Ready Stock Of Stainless Steel Threaded Flanges
- SS Threaded Forged Flange
- ASME SA182 SS Threaded Flangs
- 304L Stainless Steel Threaded Flange
- SS Screwed Flanges
- Stainless Steel Raised Faced Threaded Flanges
- Stainless Steel 316 Screwed Flanges
- Stainless Steel 316L Threaded Flanges
- ANSI B16.5 Class 150 Threaded Flanges
- SS Class 150 Threaded Flanges
- Stainless Steel Flat Faced Threaded Flanges
- SS 316 Threaded Flange
- ASTM A182 Stainless Steel Screwed Flange
- SS Threaded Pipe Flanges
- F304 Stainless Steel Threaded Flange
- Stainless Steel Threaded Flanges
- ASME B16.5 Stainless Steel Threaded Flanges
- SS Threaded Raised Face Flange
- Stainless Steel Screwed Flange
- ANSI B16.5 Stainless Steel Threaded Flanges
- Stainless Steel Raised Face Threaded Flange
SS Threaded Flanges Dimension
| FLANGE NPS |
Inside Diameter |
Outside Diameter |
Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | H | Raised Face Thickness (T) | T1 | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2″ | 0.93″ | 3.50″ | 2.38″ | 1.38″ | .063″ | 1.19″ | .62″ | .38″ | .56″ | .62″ | 4 |
| 3/4″ | 1.14″ | 3.88″ | 2.75″ | 1.69″ | .063″ | 1.50″ | .62″ | .44″ | .56″ | .62″ | 4 |
| 1″ | 1.41″ | 4.25″ | 3.12″ | 2.00″ | .063″ | 1.94″ | .69″ | .50″ | .63″ | .62″ | 4 |
| 1-1/4″ | 1.75″ | 4.62″ | 3.50″ | 2.50″ | .063″ | 2.31″ | .81″ | .56″ | .75″ | .62″ | 4 |
| 1-1/2″ | 1.99″ | 5.00″ | 3.88″ | 2.88″ | .063″ | 2.56″ | .88″ | .62″ | .82″ | .62″ | 4 |
| 2″ | 2.50″ | 6.00″ | 4.75″ | 3.62″ | .063″ | 3.06″ | 1.00″ | .69″ | .94″ | .75″ | 4 |
| 2-1/2″ | 3.00″ | 7.00″ | 5.50″ | 4.12″ | .063″ | 3.56″ | 1.12″ | .82″ | 1.06″ | .75″ | 4 |
| 3″ | 3.63″ | 7.50″ | 6.00″ | 5.00″ | .063″ | 4.25″ | 1.19″ | .88″ | 1.13″ | .75″ | 4 |
| 3-1/2″ | 4.13″ | 8.50″ | 7.00″ | 5.50″ | .063″ | 4.81″ | 1.25″ | .88″ | 1.19″ | .75″ | 8 |
| 4″ | 4.63″ | 9.00″ | 7.50″ | 6.19″ | .063″ | 5.31″ | 1.31″ | .88″ | 1.25″ | .75″ | 8 |
| 5″ | 5.69″ | 10.00″ | 8.50″ | 7.31″ | .063″ | 6.44″ | 1.44″ | .88″ | 1.38″ | .88″ | 8 |
| 6″ | 6.75″ | 11.00″ | 9.50″ | 8.50″ | .063″ | 7.56″ | 1.56″ | .94″ | 1.50″ | .88″ | 8 |
| 8″ | 8.75″ | 13.50″ | 11.75″ | 10.62″ | .063″ | 9.69″ | 1.75″ | 1.06″ | 1.69″ | .88″ | 8 |
| 10″ | 10.88″ | 16.00″ | 14.25″ | 12.75″ | .063″ | 12.00″ | 1.94″ | 1.13″ | 1.88″ | 1.00″ | 12 |
| 12″ | 12.94″ | 19.00″ | 17.00″ | 15.00″ | .063″ | 14.38″ | 2.19″ | 1.19″ | 2.13″ | 1.00″ | 12 |
| 14″ | 14.19″ | 21.00″ | 18.75″ | 16.25″ | .063″ | 15.75″ | 2.25″ | 1.32″ | 2.19″ | 1.12″ | 12 |
| 16″ | 16.19″ | 23.50″ | 21.25″ | 18.50″ | .063″ | 18.00″ | 2.50″ | 1.38″ | 2.44″ | 1.12″ | 16 |
| 18″ | 18.19″ | 25.00″ | 22.75″ | 21.00″ | .063″ | 19.88″ | 2.69″ | 1.50″ | 2.63″ | 1.25″ | 16 |
| 20″ | 20.19″ | 27.50″ | 25.00″ | 23.00″ | .063″ | 22.00″ | 2.88″ | 1.63″ | 2.83″ | 1.25″ | 20 |
| 22″ | 22.19″ | 29.50″ | 27.25″ | 25.25″ | .063″ | 24.25″ | 3.13″ | 1.75″ | 3.07″ | 1.38″ | 20 |
| 24″ | 24.19″ | 32.00″ | 29.50″ | 27.25″ | .063″ | 26.12″ | 3.25″ | 1.82″ | 3.19″ | 1.38″ | 20 |
We Serve Application Industry
Threaded Flanges applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.
We Export SS Threaded Flanges Across the Globe
Sri Lanka, Austria, Greece, Bolivia, Trinidad & Tobago, Angola, Serbia, Tunisia, Finland, Portugal, Switzerland, Bangladesh, Bahrain, Vietnam, Ukraine, Ghana, Hong Kong, Turkey, Peru, Qatar, Spain, Egypt, Pakistan, Nigeria, Azerbaijan, Brazil, United Arab Emirates, Taiwan, Norway, Thailand, Belarus, Mexico, Bulgaria, Lithuania, Colombia, Iran, Czech Republic, China, Romania, Germany, Gabon, South Africa, Kenya, New Zealand, Philippines, Namibia, Malaysia, Mongolia, Zimbabwe, Sweden, Australia, United Kingdom, Poland, Singapore, Libya, Belgium, Indonesia, Russia, Morocco, Denmark, Slovakia, Kazakhstan, Yemen, Poland, Kuwait, Venezuela, Costa Rica, Mexico, Ecuador, Japan, Algeria, Jordan, Argentina, Bhutan, Hungary, Macau, Netherlands, South Korea, Gambia, Saudi Arabia, Canada, Nepal, United States, Iraq, Israel, Afghanistan, Ireland, Chile, Tibet, Nigeria, France, Oman, Estonia, India, Chile, Iran, Croatia, Italy, Lebanon, Puerto Rico.
Domestic Supply Stainless Steel Threaded Flanges
Gurgaon, Faridabad, Coimbatore, Baroda, Noida, Chandigarh, Ludhiana, Nagpur, Navi Mumbai, Jamshedpur, Rajkot, Bhopal, Pune, Secunderabad, Colombo, Kanpur, New Delhi, Bengaluru, Pimpri-Chinchwad, Ernakulam, Mumbai, Thiruvananthapuram, Jaipur, Ahmedabad, Haryana, Vadodara, Visakhapatnam, Hyderabad, Kolkata, Indore, Chennai, Thane, Surat, Nashik, Howrah, Ranchi.
